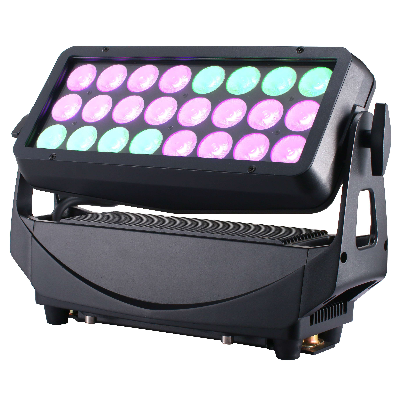

Outdoor 24x20W RGBW LED Wash Stage Lighting IP65 for Landscape Lighting Wash Led Garden Wedding Party Dj Lights DMX512

Category

Detailed Specifications

Light Source

- Source: 24×20W 4-IN-1 RGBW LEDs
 - Life Span: 50,000 hours

Optics

- Lens: 24PCS high efficiency acrylic lens

- Lens Angle: 25°/35°/45° (optional)

- Accessory 1: Easy-to-use diffuser filter (customization options)

- Accessory 2: Easy-to-use 8 way barndoors (optional)

Colors

- Control Mode: 6 Segments controllable individually

- Color Mixing: Sophisticated 4 colors RGBW mixed

- Light Effect: Even and soft light coverage with pure mixing

Preset

- Strobe Effect: 0-25Hz high speed shutter/strobe effect with variable speed

Dimming System

- Dimming Range: 0-100% Smooth linear LED dimming

- Additional Function: Smoother dimming mode available

Control System

- DMX Channels: 8/13/16/21/25/40 DMX channels

- Control Protocols: DMX512, RDM, Master-slave, Auto, W-DMX (optional)

- Built-in Programs: Multi preset internal programs

- Signal Protection: Shielded input signal protection for stable signal without interference

- Connectors: Seetronic IP65 3-Pin or 5-Pin XLR connectors (IN/OUT)

Display System

- Display Screen: 1.77" TFT LCD display

- Menu Languages: English/Chinese

- Control Buttons: 4 control touch buttons

- Display Functions: 180° Reversible for LCD display; Display auto OFF

Cooling System

- Cooling Method: Active, Forced Air, Temperature regulated

- Protection Function: Over temperature protection management

Power Supply

- Power Rating: 600W Power supply

- Voltage Range: AC100-240V 50/60Hz

- Power Connectors: Seetronic IP65 PowerCON TRUE1 (IN/OUT)

Housing

- Materials: Aluminium, steel, plastic (PC/ASA), rubber, Lens (PE) and tempered glass front

- Adjustment: Tilt angle manually adjustable

- Portable Design: Two side handles on base

- Exterior Finish: Black

Installation

- Clamps: 2×1/4 turn fastening Omega Clamps

- Safety Device: 1×Safety attachment point

Operating Condition

- Operating Positions: All (device on floor or fixed to a support)

- Ambient Temperature: -25° to 45°

- Protection Rating: IP65

Weight

- Net Weight (N.W.): 6.6kg

Dimensions

- Product Dimensions: 420(D)×140(W)×265(H)mm
