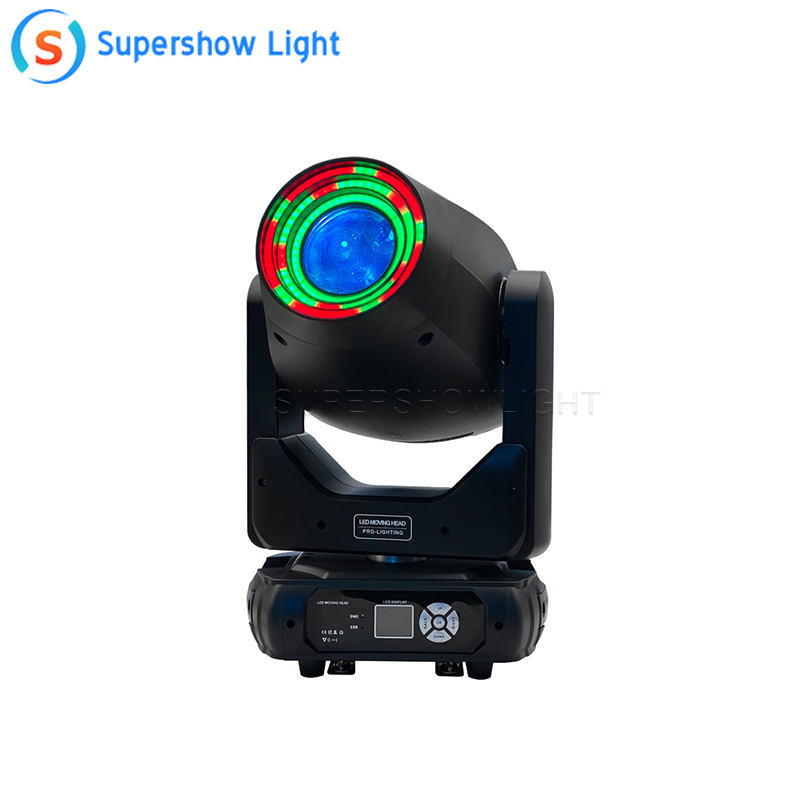

3 Ring 300W LED Moving Head Light

Model :

S300BSW/XK

Light Source:

Light source: 1 x 300W  LED engine

LED color temperature:  8000K

LED life expectancy: 20000 hours

3 Rings with 135pcs 0.3W 5050 RGB LEDs

Optical System

Advanced optical system to ensure image quality, clear and sharp

Diameter of front lens: 120mm

Beam Angle: 6°/28°

Wash Angle: 10°-30°

Control and Program

5-buttons panel

Display: LCD display,can be 180° Reversible to fit the installation in different place

Protocols: DMX,RDM

DMX Protocol modes: 2

Control channels: 26,35

3 kinds of control model:DMX512、、Sound、Master/Slave

Pan/Tilt Resolution: 16 bit

Automatic Pan/Tilt position correction

Dimmer: 8 bit or 16 bit

Upgrade the firmware via DMX link

PAN & TILT

Pan movement: 540°

Tilt movement: 270°
