Moving Head Light

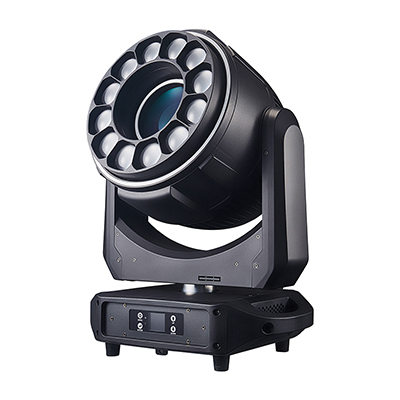

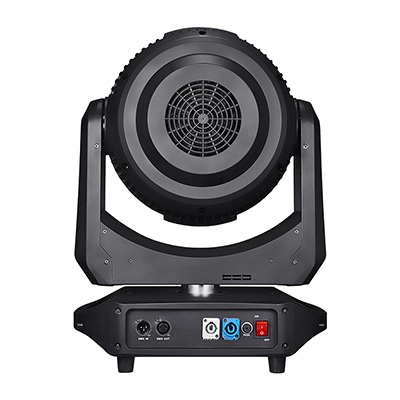

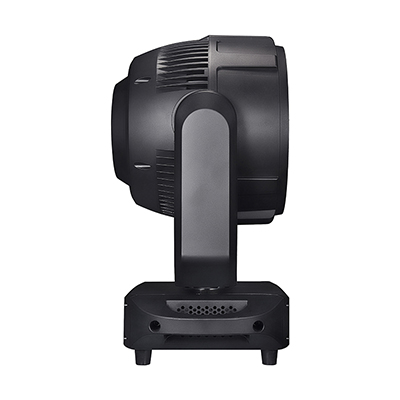

12*60w BEAM+WASH Moving head light
- Product description: 12*60w BEAM+WASH Moving head light
-
Input voltage range: 100-240V~ 50/60Hz
Power: 800W
Power socket: Power connector input
Signal input/output: 3-pin XLR socket
Light source: 1 x 200W LED, 12 x 60W RGBW LED
Light color temperature: 7,000K (200W LED)
Luminous flux: 5,000 lm (200W LED)
LED expected service life: 20,000 hours
Optical system
Beam angle: 3°(200W LED)
Zoom angle: 4°-51° (40W RGBW LED)
Control and program: 4 touch buttons
Control panel: LCD display
Control mode: DMX512, RDM, Art-Net, sACN
DMX channel mode: 3 types
Control channels: 30 channels
Software upgrade: Update software via DMX connection
AI IoT system: AIOT Fengyun system, "Yi Data" automatic management system (optional)
X-axis/Y-axis
X-axis rotation angle: 540°
Y-axis rotation angle: 215°
X-axis/Y-axis position desynchronization automatic correction
X-axis/Y-axis: 16-bit precision scanning
Pattern wheel: 1 fixed pattern wheel, 9 patterns + white circle
Color wheel: 1 color wheel, 13 fixed colors + white, with rainbow effect
Prism: 1 8-prism, 1 honeycomb prism, can be superimposed and rotated in both directions
Atomizer: 1 atomizer
Other effects
Linear CTO color temperature adjustment: 2,500K-8,000K (40W RGBW LED)
Multiple speed strobe effects
Electric focus system
0-100% smooth dimming
Working environment
Maximum ambient temperature: 40°C
Minimum working temperature: 0°C
Maximum surface temperature: 65°C
Protection level: IP20
