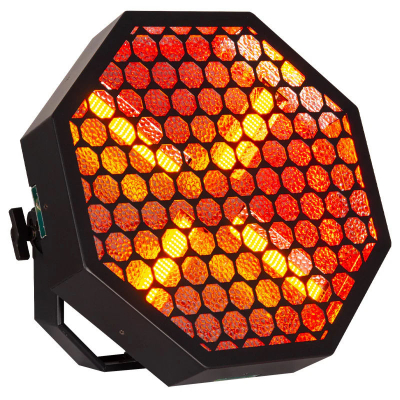

Octagon retro light
Features:
4 Foreground Amber LEDs
64 Background RGB LEDs
All LED's are Individually Controllable via DMX
Built-In Foreground LED Programs
Built-In Background LED Programs
Variable White Color Temperature Control (2,700K ~ 10,000K) (RGB LEDs)
User Selectable LED Refresh Rates (900Hz ~ 25K)
6 User Selectable Dim Modes
4 User Selectable Dim Curves
Electronic Strobe (0.1Hz ~ 20Hz)
Electronic Dimming
Source:
(4) 60W, 2000K, Amber Foreground LEDs
(64) 3W RGB Background LEDs
50,000 Hour Average Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns
(On-Off Cycling), Control, and Dimming.
Optical:
Amber: 2000K (+/- 50K)
RGB: 2,700K ~ 10,000K White Color Temperature Range
Output: 220 Lux, 7000 to 8000 Lumens
140° Beam Angle
150° Field Angle
Physical:
IP20, Metal Housing
Safety Eyelet
Digital Display
Coffin Lock System to Interlock up to 8 Vintage X units
Adjustable Hanging Bracket
Omega Clamp Receivers (Omega Clamp Sold Separately
Control:
DMX512
Aria X2 Wireless Management / DMX System
Bluetooth
RDM and RDM Net Compatible
(10) DMX Channel Modes (10, 16, 25, 42, 47, 196, 203, 210, 214, and 218 Channel modes)
On-board Manual Control Mode
Primary / Secondary Mode
Dimensions & Weight:
Length: 15.7" (398mm) Width: 15.7" (398mm) Height: 7.6" (194mm)
Weight: 18 lbs. (8.2 kg)
