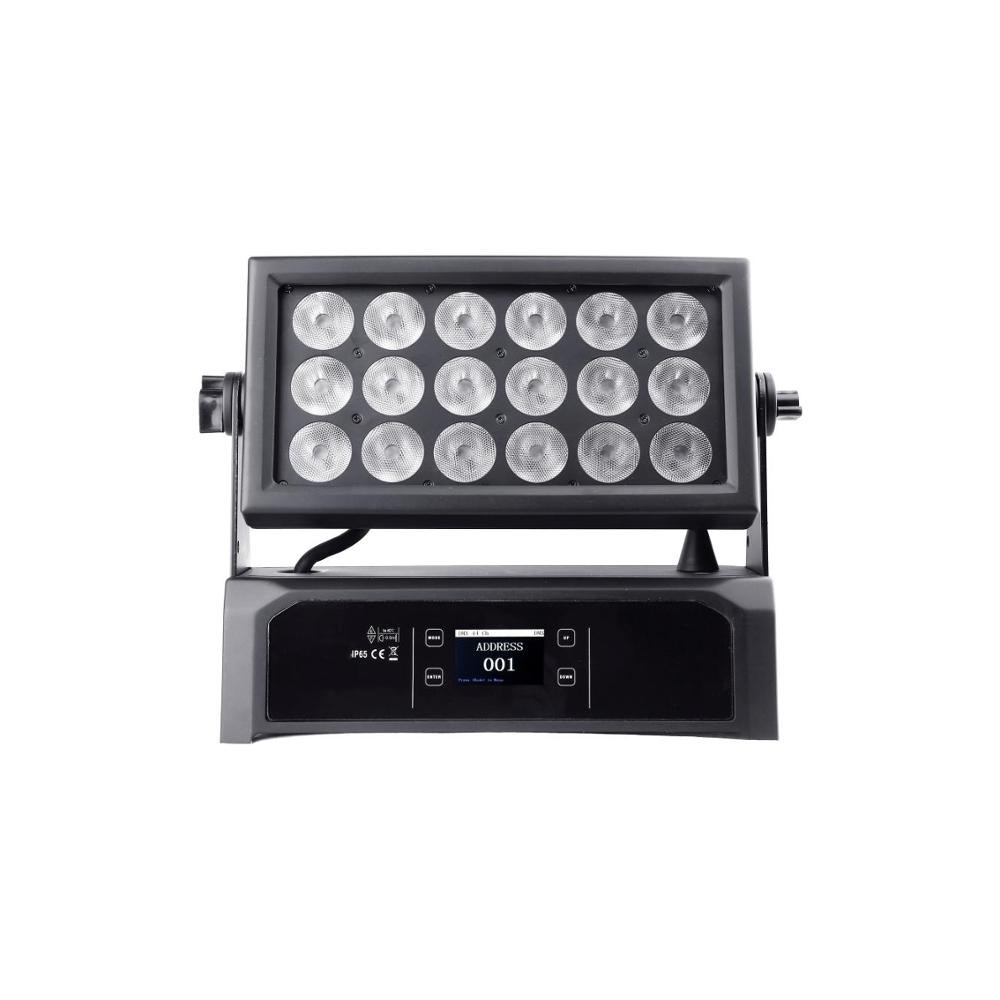

Specifications
•Rated Voltage:AC100V~240V 50-60HZ
•Rated Power:250W
•LED Qty:18x15W High power RGBW LEDs
•LED Drive Current: 1A
•Beam Angle: 25°(10°,45°optional)
•IP Class: IP65
•DMX Mode:2/3_1/3_2/4/12/14/26CH
•Packing Size:450x345x250 mm
•Net weight:8.2Kg
•Gross weight:9.4Kg
Product Features
•Dmx input:3 pin electronic J3F2C-W .
•Dmx output:3 pin electronic K3F2C-W.
•Power connection:electronic powerCON in(SAC3MPX)/ powerCON
out(SAC3FPX)
•3 kinds of control model: DMX512,WDMX,Master/slave.
•2.4G Wireless DMX control.
•Setting and Addressing:RDM
•Software update:Update via DMX link
•DMXfunction:Dimmer,Strobe,RGBW,Macro color,Color jump,Color
fade,Rainbow,Auto Program choice,Auto speed,Curve dimmer
select,Function setting
•Stand-alone mode: Color step,Color shade,Auto,Slave,Macro color,Static
color setting, Rainbow,Auto program choice.
•Housing:aluminium.
•Housing color:Black .
•2.4inch TFT color display screen
•High anti-jamming four-button touch keys
•Operation temperature:-20°C~+40°C .
•7 Kinds of DMX modes: 2/3_1/3_2/4/12/14/26CH.
•Dimmer:0-100%and 16Bit dimmer.
•Dimmer mode: 2 kinds..
•Refresh rate:800Hz/1200Hz/2000Hz/3600Hz /25KHz optional
•4 kinds of curve dimmer:Linear Dimmer,Square Dimmer,I. Square Dimmer,
S-Curve Dimmer.
•Display board can be 180°in turn,it can be fitted in different setting.
•Strobe effect:Plus Random,Ramp up Random,Ramp down Random,
Random strobe,Strobe Break Effect,5s......1s,Strobe 0-20Hz.
•Perfect mixing color and rainbow effect
•Cooling system:fan cooling(Auto&high-speed)
Stage lighting, Theater lighting, dj lights DMX Control, beam, stage equipment for show event, stage event, party, Lighting rental, music wedding event, bar, outdoor project, park, brige, hotel, buidling and so on.
