BRIEF

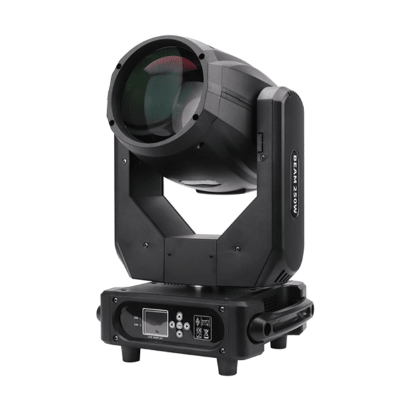

The revolution in moving head beam.
Lighter-the total weight is only 15kgs.
Faster–pan and tile movement is more faster.
Brighter–the color temperature reach to 8500K.
More brightness than beam 700W and beam 1500W.
Higher color temperature.
Higher brightness.
Smaller size.
Stronger–the beam effect is more stronger ,and more smarter.
More function–With the costly 3 precise glasses combination optical lense, this beam have functions of Focus, 24-prism, 8-prism, 14 colors 14 gobos. Strobe, dimmer, frost etc.
With its light weight and modest footprint, Sharpy is small enough to be fitted anywhere–on trusses at live and TV events, on stage, in showrooms or conference rooms.
SPECIFICATION
Input Voltage: AC90-240V 50/60HZ
OPTICS
Lamp Source optional:Philips MSD 250W
Lifespan: 2,000Hrs
EFFECTS SECTION
Dimming: 0-100% linear adjustment
Strobe: heat-proof plastic+module pressing alloy materials
Electronic Focus, Frost filter
Prism: Rotating 8-facet prism+24-facet prism
Beam angle:0-3.8 degree
Rotating Gobos: 1 gobos wheel with 14 fixed gobos+open
Colors: 1 color wheel with 14 fixed colors+open
1 multi-color wheel
CONTROL AND PROGRAMMING
Control Protocol: DMX512,automatic and master/slave mode
Channel: 16/20CH
Display: LCD display
MOVEMENT
Pan:540° TilL:270°
Pan/Tilt Resolution: 16bit
Housing Color: Black or White selectable
PACKING DIMENTION
Size: 510mm*230mm*290mm(L*W*H)
Net Weight: 15KG
COLORS
MULTI-COLOR WHEEL
EFFECT MODE
GOBO WHEEL
CHANNEL LIST
