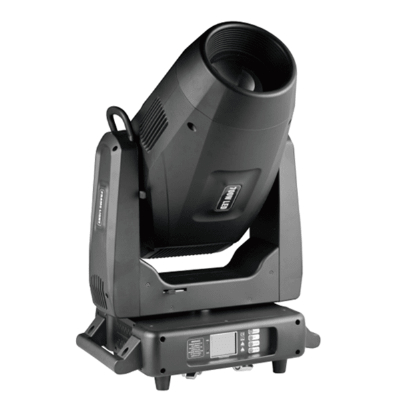

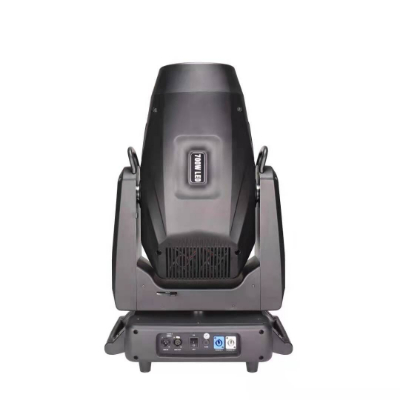

Profile L700F 700W LED-Based Framing Moving Head Light
Product description: Profile L700F
700W LED-Based Framing Moving Head Light
BRIEF MEANReal's milestone product, the Hybrid 700W LED BSWF, with its break-through 700W white LED technology,produces an output of over 23,000lumens, and is the perfect replacement for all max-strength spotlight fixtures with discharge lamps up to 1200W. The Hybrid 700W LED BSWF masterfully combines Beam,Spot and Wash capability with a 4-blade framing shutter - making four functions in one solidly-build unit. The 4.5-50˚zoom is smooth and consistent throughout the entire range, with no hitches or pauses. With its CRI 90/74 switch and choice of light or heavy frost filters, it is an attractive option for various applications including video shoots, fashion shows and more. SPECIFICATION POWER SUPPLY AC110-240V,50/60Hz electronic auto-ranging Power consumption: 850W Luminous flux: 23000LM
OPTIC Light source: High power 700W white light LED,6800K LED life: 20,000 hours CRI:≥74,Ra≥90 Focus:Motorized focusing, ultra-smooth focus adjustment Iris: Motorized, linear Strobe: 25Hz with random pulse strobe Dimming:0~100% linear dimming Frost: 0~100% linear frost Zoom angle: 4.5 degree to 50 degree linear zoom
EFFECT SECTION CMY+CTO color mixing system 1x color wheel: 7 fixed colors + white, half-color with rainbow effect 1x rotating gobo wheel:6 replaceable rotating gobos + white with gobo shaking 1x fixed gobo wheel: 8 fixed gobos + white with gobo shaking Prism wheel: Rotating 3-faced prisms +6-faced linear prism, two prisms can be overlayed 1x animation wheel with water, wave and flame effects, rotatable and replaceable
FRAMING SYSTEM Framing shutters: 4x framing shutters, each individually controllable Each shutter blade can block out light completely Framing module can be rotated at 90° Movement is fast, smooth and precise, with adjustable speed
CONTROL AND PROGRAMMING Battery backup for user setup without mains connection Touch colorful LCD display With RDM function Channel:36 standard DMX512 channels
MOVEMENT Pan scanning::540°or 630° (16 bit resolution) Tilt scanning:270° (16 bit resolution) Automatic position correction Pan/Tilt lock
PACKING DIMENTION Dust-proof and oil-proof design Size:510Lx345W x 800H(mm) Net weight: 40kgs Gross weight: 43kgs DIMENSIONS PHTOMETRICS CMY+CTO
