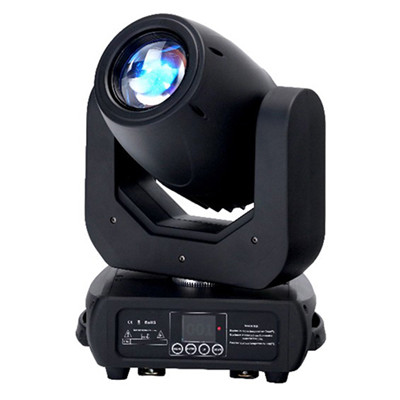

LED Moving Head Spot 150W, Cool White, 15° |
Technical Data: |
LIGHT SOURCE |
* LEDs: 1pc COB 150W, cool white |
* LEDs brand: Tyan Shine |
* Color temperature: 8500K |
* Color rendering index(CRI): Ra>77 |
* LEDs average lifespan: >50,000hrs |
* Drive mode: constant current |
* Drive current(A): 10 |
OPTICS |
* Beam angle: 15° |
* Optic lens material: dichroic glass |
* High quality optic system make super brightness |
* 16 bit smooth dimming |
* Light ouput (full Bright): 5865lux@4mtr; 1450lux@8mtr |
COLORS |
* Color wheel: 7 colors + open |
* Rainbow effect at variable speeds in bi-directions |
STATIC GOBO WHEEL |
* 1pc static gobo wheel: 8 metal gobos + open |
* Gobo shake at variable speed |
* Gobo flow at variable speeds in bi-directions |
ROTATING GOBO WHEEL |
* 1pc rotating gobo wheel: 6 rotating, indexable, interchangeable |
gobos(4 metal + 2 dichroic glass) + open |
* Gobos diameters: outside 16mm, image 14mm |
* Gobo bounce at variable range |
* Gobo flow at variable speeds in bi-directions |
EFFECTS |
* Electronic dimmer: 0-100% linear |
* Electronic strobe: 0-20 flashes/sec. |
* Electronic linear focus |
* Prism: 3-facet circular prism |
* Prism: indexable, replaceable, bi-directional rotation at |
variable speed |
* Built-in movement macros |
* Built-in effects macros |
* Built-in color changing macros |
CONTROL MODE |
* Control mode: DMX, autorun, Master/Slave, Sound-activate |
* Control mode: DMX wireless |
* DMX channels: 10/12/14/16CH |
* Onboard programming enables programming |
without external DMX controller |
* DMX Data In/Out: XLR 3Pin (XLR 5Pin optional) |
* Wirelss DMX Data In: XLR 5Pin (XLR 3Pin optional) |
DISPLAY & MENU SETTING |
* Display: 2inch LCD backlit |
* Display: with flip function (can be rotate through 180°) |
* Display can be set via menu, either always ON or delay OFF |
* Display delay OFF setting via menu: 30sec |
* Display fixture's software version |
* Display light source plate's real time temperature |
* Menu language: English |
* Setting and addressing via 4-menu-button |
* Reset: via DMX and/or menu operate |
* Factory default setting can be set via menu |
PAN-TILT |
* Pan: Max 540°, with 8 or 16 bit resolution |
* Tilt: Max 250°, with 8 or 16 bit resolution |
* User-selectable Pan/Tilt ranges |
* Automatic Pan/Tilt correction |
* Pan/Tilt motors: 3 phase, fast and quiet movement |
* Scan speed: Pan 1.5 sec./540°; Tilt 1.0 sec./250° |
BODY |
* Inner frame: module pressing high strength alloy |
* Housing: die-cast flame retardant plastic |
* Housing surface treatment: baking finished |
* Housing color: black (white optional) |
* Two side handles for transportation (left & right) |
POWER SUPPLY |
* Power consumption: Max. 220W |
* Auto switching power supply unit, PFC>0.96 |
* Power supply: AC100V-240V, 50/60Hz (auto-ranging) |
* Power In/Out: powercon, daisy chain |
* Power linking: up to 1units@120V and 3units@230V |
COOLING & THERMAL MANAGEMENT |
* Thermal management system ensures long life of LEDs |
* Automatic reduce power of light source in case of overheating |
* Heatsinks in aluminum |
* Cooling for head: forced air convection with 1 fan |
* Cooling for base: forced air convection with 1 fan |
* Cooling fan speed auto change according to temperature |
* Cooling fans auto start once internal temperature reach 45º |
SAFETY DEVICES |
* Electronic protection against short circuit |
* with safety chain through hole at the bottom |
RIGGING |
* 2pcs omega brackets with 1/4-turn quick locks |
ENVIRONMENT AND PHYSICAL |
* IP rating: IP20 |
* Environment temp: -20°C-40°C |
* Dimensions(mm): W295 x D240 x H380 (head horizontal) |
* Dimensions(mm): W295 x D195 x H427 (head vertical) |
* Net weight: 12kg |
ACCESSORIES |
* Power input cable included, length 1.2mtr |
* Power cable: 0.75mm2, PVC |
* DMX cable not included (optional) |
* Safety cable not included (optional) |
* Hanging bracket included (2pcs/pair) |
