wireless battery series

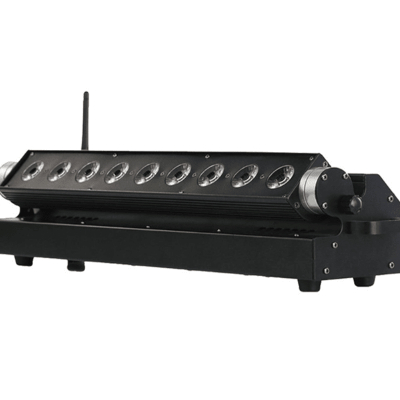

9*12W LED Battery Wall Wash Bar
- Product description: 9*12W LED Battery Wall Wash Bar
-
SPECIFICATION
ELECTRICAL
AC power 100-240 V, 50/60 Hz
Power consumption 90W
Fuse T 5. A
OPTICS AND PHOTOMETRIC DATA
Light source: 9x 12 W RGBA/RGBW Leds Chips
Beam angle: 25/40°
LED lifetime 50 000 hours (to >70% luminous output)
DYNAMIC EFFECTS
Color mixing: RGBA | RGAW
Color selection: 38 color presets
Electronic dimming: 0-100%
Strobe and pulse effects Variable speed and action, random strobe
Electronic shutter effect Instant open and blackout
CONTROL AND PROGRAMMING
Control options DMX, stand-alone Sound active, Auto, Static Mode,Wireless DMX
DMX channels: 6/11
Stand-alone trigger options Music trig, auto trig, Linkable
Standalone built-in shows Random, preset colors, or variable fade
Settings, addressing and programming Control panel with LED display
Sound activation Adjustable microphone sensitivity
DMX compliance USITT DMX512/1990/ DMX 512 Universal
Wireless DMX Transmitter compliance Universal DMX 2.4GHZ with 7 group
CONSTRUCTION
Color Black | White
Protection rating IP20
Housing: Metal /Aluminum
Reflector Precious glass lens
Protection rating IP 20
CONNECTIONS
AC power in/thru American/European Power in socket
DMX data in/thru 3 or 5-pin locking XLR
Wireless DMX Receiver 2.4GHZ DMX Signal receiver
PHYSICAL
Weight: 5 kg (13.3 bs.)
Dimensions: 600 x 120 x 125mm (23x 4.7 x 12.9 in.)
