Rated voltage: AC100V-240V 50/60Hz
Input power: 500W
Light source specification: 7 60W RGBW LED6065
Auxiliary light source: 67 0.5W LED beads
Rated lifespan: 30000 hours
Colors: Red, Green, Blue, White, Multiple Colors
Focusing: 4°-60°DMX linear focusing
Color temperature control: built-in CTO DMX linear dimming
Electronic strobe, 0.3-25 times/second, can choose synchronous or asynchronous random strobe
Dimming: Electronic dimming with 0-100% linear adjustment, with gamma curve dimming frequency adjustable from 1.2K to 25K, macro command dimming with linear stability and smootiwithout flicker, using stable constant current drive and power supply, suitable for video recording and shooting
Rotation angle: The XY axis is driven by a high-speed silent 60 three-phase motor, coupled with a high-precision imported Hall positioning device, making the operation positioning moreaccurate. When there is a misoperation, it can automatically return to its original position, and the horizontal and vertical speeds can be adjusted; XY axis rotation function and reverse fundHorizontal direction 540°(16 bit precision scan), vertical direction 270°(16 bit precision scan)
Control mode: 30 (simplified) 30/42/58 (standard) 3 channel control modes, standard DMX512 protocol, RDM protocol

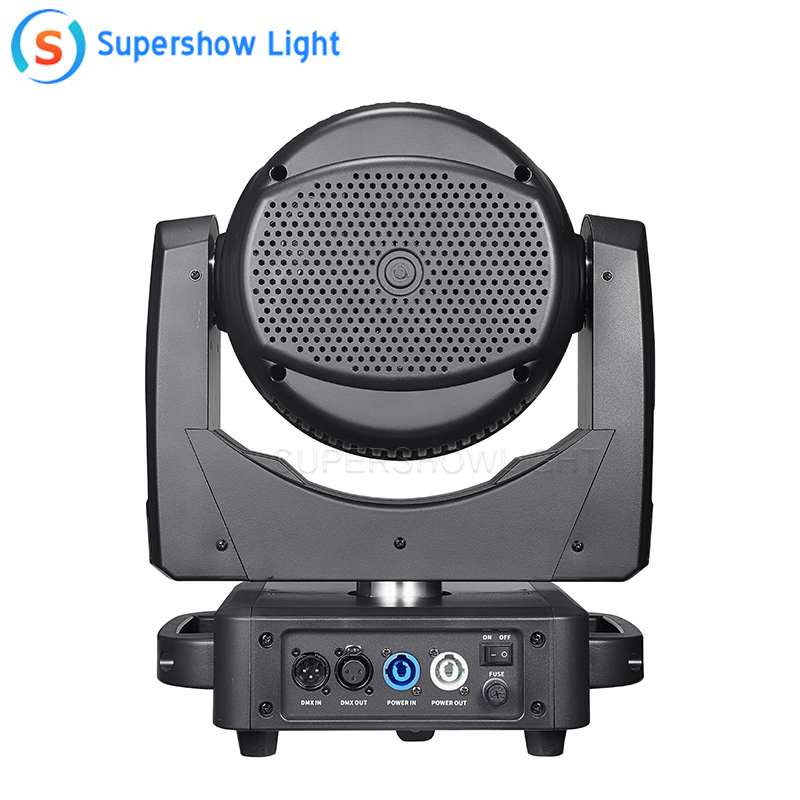

Control interface: DMX512 interface (3-core/optional 5-core), power cord handle socket
Sleep function: Advanced technology is used to achieve remote sleep function. When the light fixture disconnects the signal, it automatically enters sleep mode, making the light fixture more stable and safe
Display function: 1.77-inch LCD screen, bilingual menu in Chinese and English, sensor fault display, temperature display
Cooling system: High conductivity lightweight aluminum radiator is used, and the intelligent monitoring technology of the fan automatically adjusts the fan speed according to the temperature of the lamp. The built-in overheat protection intelligent system/intelligent temperature and noise balance module
Protection level: IP20, Optional rain cover with protection level up to IP44
Lamp packaging: waterproof and shockproof aviation box or cardboard box
Net weight: 17KG Gross weight: 19.5KG Product size: 34*23*41CM Packaging size: 47*34*52CM (one pack, one)
Effect mode: (Vortex, Kaleidoscope)
The front mirror disc can rotate infinitely, seamlessly spliced mirror disc, non spherical lens structure, single point control of light bead, light strip effect: strobe, scrolling effect, with built-in program
characteristic:
1. Screen automatic rotation function, the system can automatically rotate the screen according to the direction of gravity, without the need for manual rotation! You can also turn off theautomatic rotation function
2. The integrated motherboard design solves the problems of e-liquid, colored paper, etc. it can independently control the LED beads, race effect, built-in and other rich effects. The product has built-in RDM remote control panel dialing upgrade function
