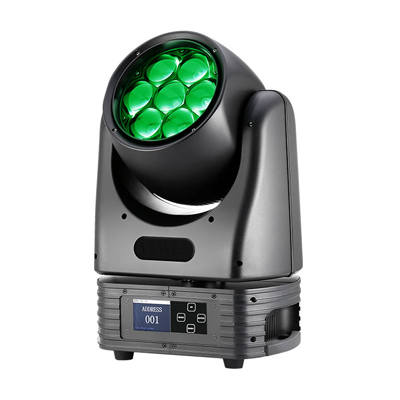

7x40W LED Beam Moving Head Stage Light Lumiere Disco RGBW Strobe LED Wash
- Product description: 7x40W LED Beam Moving Head Stage Light Lumiere Disco RGBW Strobe LED Wash
-
7x40W LED Beam Moving Head Stage Light Lumiere Disco RGBW Strobe LED Wash 7*40w Zoom for Live Shows and Events
LED type: 7x40W 4 in 1 RGBW LED, uniform and delicate color mixing effect
Beam angle: 4-60 °
Lens: 145mm high brightness PMMA lens
Full brightness 5 meters Illumination 18000lux @ 4 °
Excellent color mixing effect and rainbow effect
LED can be controlled separately, with chase and running effects.
Life: 50000H, low power consumption, energy saving and environmental protection
Scanning
Pan / Tilt operation:：
16bit fine-tuning
Smooth and precise positioning
Pan : 540 ° or 640 °, tilt220 °
Adjustable pan and tilt speed
The scan position can be memorized, and it will be reset automatically after no expected operation.
Pan and Tilt error correction
Color
Uniform RGBW color mixing system and rainbow effect
White balance can be adjusted manually
Specification
4 DMX channel modes: 19CH / 27CH / 47CH / 55 international standard DMX512 channels
4 control modes: DMX512, Artnet, voice control, master-slave
Beam angle: 4-60 ° Zoom
Strobe effect :Puls Random、Ramp up Random、Ramp down Random、Random strobe、Strobe Breakeffect, 5s…..1s、Strobe0-20Hz
Dimming: 0-100% 16bit dimming, which can control the light and dark change and close light of 4 colors at the same time
Display
2.4-inch TFT color display
High anti-interference four-button touch button
Display board can be 180 ° inverted, suitable for installation in different positions
Software
Software update :Update via DMX link
Display the use time of the lamp, so that customers can understand the use of the lamp in time
LED refresh frequency: 800Hz / 1200/2000/3600 / 25000hz optional
4 kinds of dimming curve:Linear Dimmer、Sqaure Dimmer、.Sqaure Dimmer、S-Curve Dimmer
Dimmer mode: 2 kinds.(LED and Halogen)
Other functions
Setting and addressing: RDM
ArtNet control: RJ45 input and output
Fan cooling (fan changes speed with temperature change)
LED temperature detection system to protect the life of the LED
Power / Signal connection
Power connection: PowerCON power line input and output
DMX card dragon seat: 3 Pin card dragon seat input, output
Power
AC100-240V 50 / 60HZ
Power consumption: 320W
Protection class
Housing material: ABS plastic fireproof material
Waterproof rating: IP20
Working environment
Indoor working temperature: -20 ° C ～ + 40 ° C
Size/weight
Packing size: 350x265x540mm
Net weight:9.5kg
Gross weight:10.8kg
