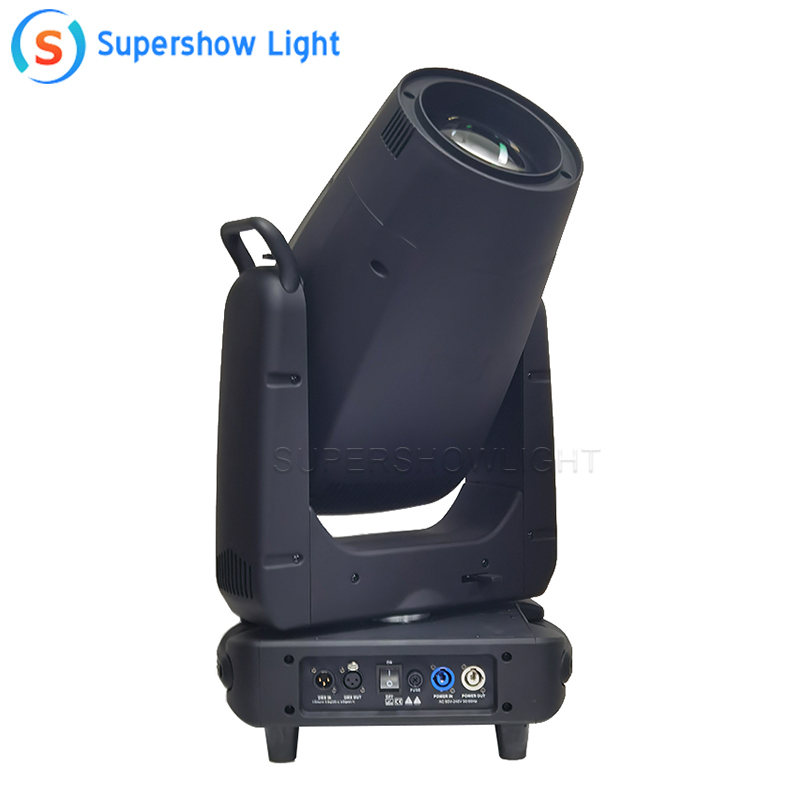

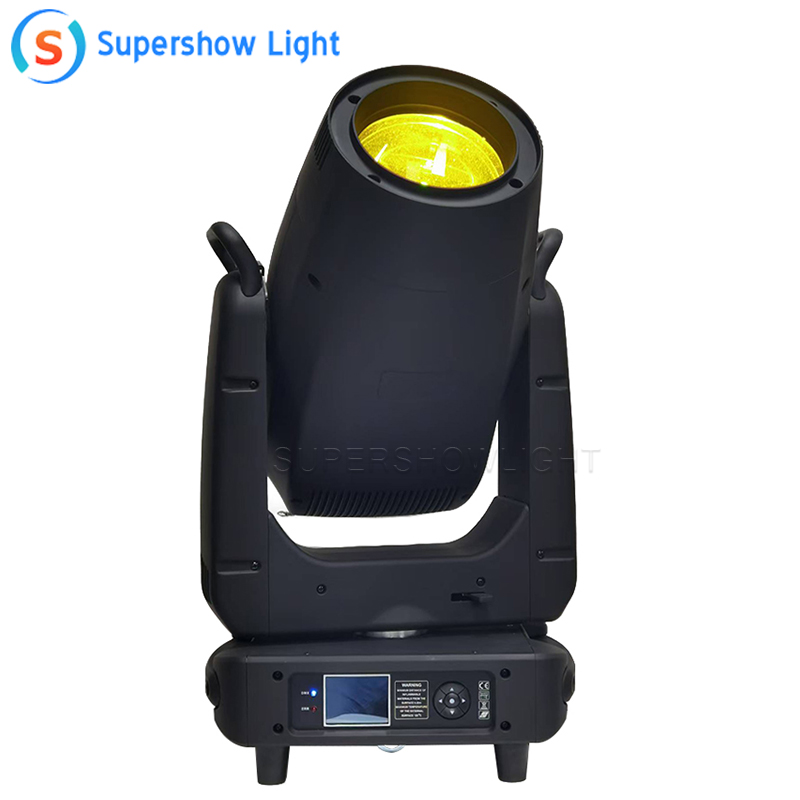

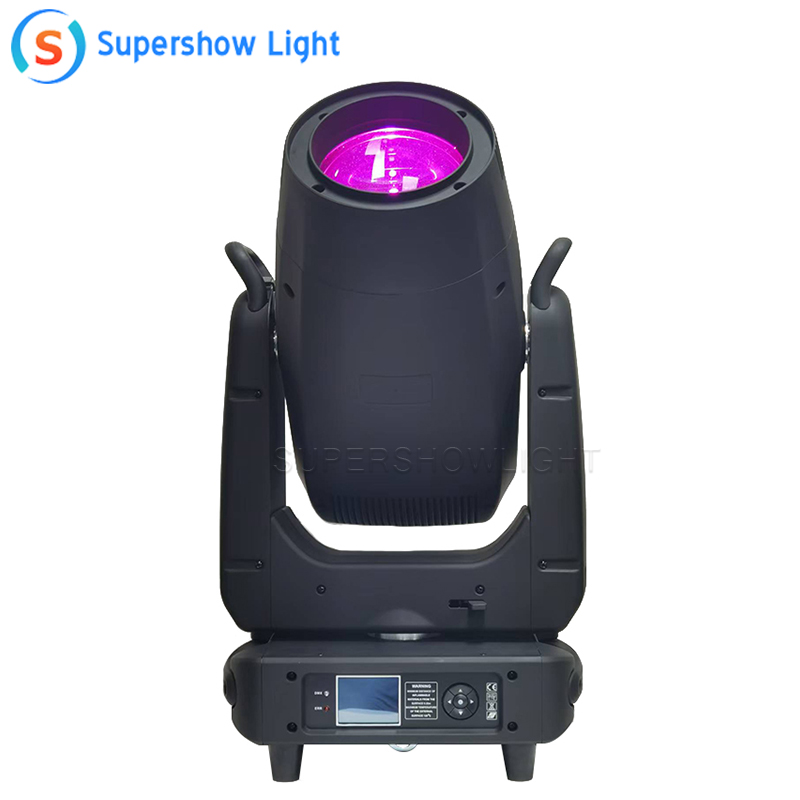

700W LED BSWF PROFILE MOVE HEAD LIGHT

Product Instruction

Fits a powerful 700W LED engine and its front lens is 180mm diameter

Linear CMY color mixing

Excellent color macro effect

34 channel mode

Static gobo wheel: 1 static gobo wheel with 6 gobos

Rotating gobo wheel: 1 rotating gobo wheel with 7 gobos, convenient replacement

Color wheel: 1 color wheel with 5 colors

Prisms: 1pc 4-facet prism can rotate in either direction

Beam Angle: 3°-50°

Frost: the frost filters to create and improve the wash effect.

Motorized linear Iris

8 x fast and smooth framing motors; The position and the angle of each shutter blade can be controlled individually;

The framing module can rotate at ±60 degrees

Flicker free management

Dust-proof and oil-proof design

N. W :26KG

G. W ：31KG

Packing size :83x51X42cm
