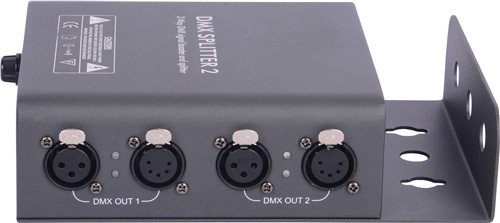

DMX signal amplifier and distributor
1 input to 2 outputs plus DMX Thru
Electric isolation between input & output
Electric isolation between output & output
Power and signal indicator each output
Terminator button for the last unit
DMX Input: 3pin & 5pin XLR In
DMX Thru: 3pin & 5pin XLR Out
DMX Output: 3pin & 5pin XLR Out
Powercon IN & Out
Wall or truss mounted
Power input: AC 110V or 230V
Dimension: 242 x 140 x 55 mm
Weight: 1.4 kg
