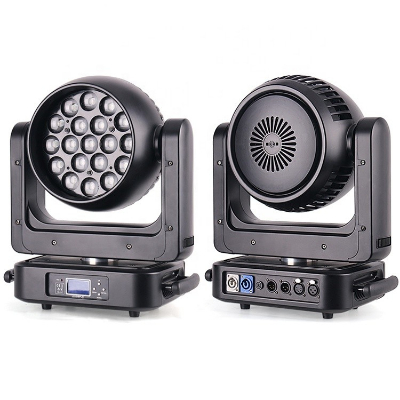

Product description: 19*25W LED Wash Moving Head Light
BRIEF The iPure W1925 is anultra high power LED based moving head wash with smart and compact stylish fireproof housing with a smooth, fast and quiet motorized zoom from 10°-60°range. It features 19*25W 4-in-1 RGBW LEDs integrated with high efficiency optic lens. It’s a wash light combining multi color beam leds allowing you to create an endless range of color variations. The fixture also provides 3 concentricrings offering unique possibilities for creating stunning colour and pattern audience blinding and eye candy effects as well as for providing comprehensive and perfectly even wash coverage. The fixture offers kinds of variable speed shutter/strobe effect, color macro effect to it’s users for easy operation. It also comes with incredibly fast and smooth PAN/TILT movement, simple and complex DMX channel profiles.The fixture is tuned with proper LED refresh rate for flicker free operation for TV and FILM. It’s a perfect option for large scale live concerts, TV productions, road shows, theatre, etc.
SPECIFICATION Light Source Source: 19*25W 4-IN-1 RGBW LEDs Flicker free operation for broadcast TV and FILM Life Span: 50000H The life span may vary depending on several following factors but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming, etc)
Optics 19PCS Specific optic lens of highly efficient elements Optimized light pipe for higher LED efficiency 10°-60°Smooth and quiet linear motorized zoom Movement PAN movement: 540°(8/16 bit) PAN movement: 270°(8/16 bit) Fast, quiet, smooth and precise 2-Phase motors Smooth, fast and precise resolution for PAN/TILT movement with low noise operation Scan position memory, auto reposition after unexpected movement PAN/TILT reversible
Color System 3 Concentric rings with each ring controllable individually Sophisticated 4 colors RGBW mixed Even and soft light coverage with pure mixing Preset color macross Virtual color wheel effect with variable speed Color macros for each ring CTO correction available White balance adjustable
Strobe Effect 0-25Hz high speed shutter/strobe effect with variable speed 3 Preset random strobe effects with variable speed 2 Preset pulse strobe effects with varaiable speed 4 Preset other strobe effects with varaiable speed
Dimming System 0-100% Smooth linear LED dimming with fine control 4 Dimming curves, linear/square law/Inv. Square law/S-Curve
Strobe Effect 20T/sec high speed shutter/strobe effect with variable speed Dimming System Smooth linear mechanichal dimming
Control System 15/27 DMX channels USITT DMX-512 DMX512, master-slave, sound activated or auto operation DMX recorder and edit function integrated Shielded input signal protection for stable signal without interference 3-Pin XLR connectors IN/OUT
Display System 2.4" TFT LCD display English/Chinese menu 4 Control buttons DMX signal monitoring indicator 180°Reversible for LCD display Display auto OFF
Cooling System Advanced cooling system integrated aluminum and copper with liquid Efficient low noise self adjusting fan cooling system Over temperature protection management
Power Supply Electronic supply with active PFC AC100-240V 50/60Hz PowerCON IN with swtich and fuse 570W Power consumption
Housing Moulded fire proof ABS PC Skeleton made of aluminum and steel metal plates Two side handles on base Exterior finish: Black
Installation 2*1/4 turn fastening Omega Clamps 1*Safety attachment point
Operating Condition Operating positions: all (device on floor or fixed to a support) -25℃ to 45℃ ambient temperature IP20 protection rating
